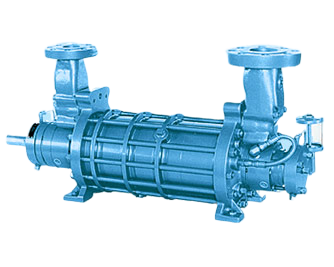

Multi Stage Self Priming Pumps
LEAKLESS (INDIA) ENGINEERING Designed LMSP Series Multi Stage Self Priming Pumps suitable for negative suctions Up to 5 Mtrs without foot valve. The pump is designed with low speed for long life of bearings and mechanical seals. Pump has multiple impellers for high pressure. Its modular design and multiple configurations make it ideal for your system.
Material Of Construction
- CAST IRON
- CAST STEEL (WCB)
- CD4MCu
- S.S 316 (CF8M)
- S.S 304 (CF8)
- S.S 316L (CF3M)
- HASTELLOY B (N12MV)
- HASTELLOY C (CW12MW)
- ALLOY 20 (CN7M)
- DUPLEX SS (GRADE 4A,5A,6A)
- PHOSPHORUS BRONZE)
- TITANIUM
- NI-HARD
- HARD METAL CASTINGS
- GUN METAL
Applications
- BARREL LOADING/UNLOADING
- UNDERGROUND TANK UNLOADING
- EFFLUENT TREATMENT PITS
- DETERGENTS AND CAUSTICS
- SOLVENTS UNLOADING
- EFFLUENT TREATMENT
- DRUM UNLOADING
- SPRINKLE SYSTEMS
- FITLERPRESS UNITS
- HEAT EXCHANGER
- ACID TRANSFER
- LOADING/UNLOADING
- COOLING TOWERS
- CHILLING PLANT
- EJECTOR SYSTEMS
Operating Range For MULTI STAGE SELF PRIMING Pumps
| Capacity : | Up to 100 m3/Hr |
| Head: | Up to 200 Meters |
| Speed : | 1450 to 2850 RPM1450 RPM |
| Pump Size-DN: | 19mm To 100mm |
| Temp: | Up to 150° C |
